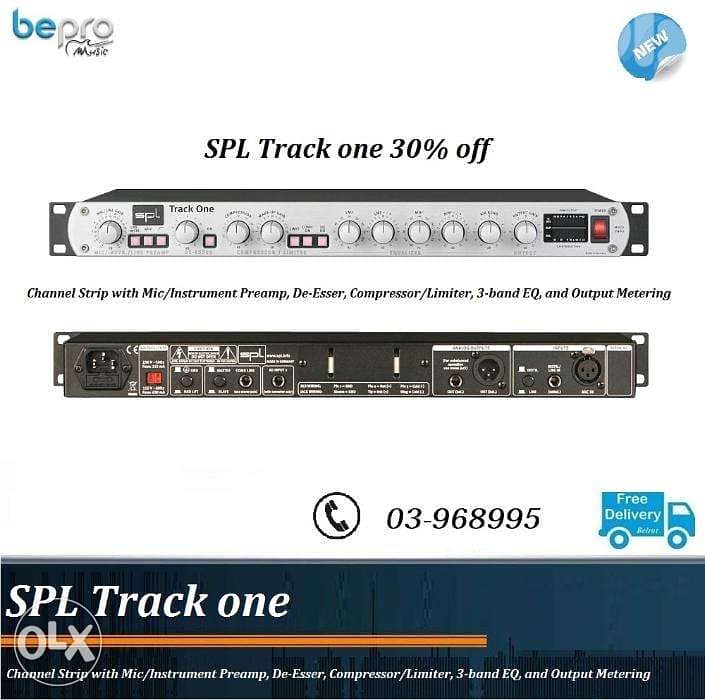

SPL Track one, Professional Mic preamp class A,made in Germany
دوحة عرمون، عاليه
منذ 2 أسابيع
التفاصيل
توصيلالتسليم الذاتي
النوعأغراض أخرى
الحالةجديد
نوع البائعشركة
الوصف
SPL Track one, Professional Mic preamp class A. made in Germany,special order in 3 weeks, 50% in advance & 50% on delivery.
PL Track One Specs
Microphone Input Frequency response: 10 Hz to 200 kHz (200 kHz = -3 dB)
Common mode rejection: 1 kHz: -80 dB / 10 kHz: -68 dB (at -20 dBu)
THD & N
(amplification A-weighted)
20 dB -97.5 dBu
40 dB -91.0 dBu
65 dB -69.6 dBu
Dynamic response: 115 dB
Instrument Input Frequency response: 10 Hz to 180 kHz (180 kHz = -3 dB)
THD & N
(amplification A-weighted)
7 dB -98.4 dBu
20 dB -95.8 dBu
42 dB -77.2 dBu
Input impedance Line: 12 kOhm / Instrument: 1 MOhm
Max. input level Line: +28 dBu / Instrument: +12 dBu
Dynamic response: 115 dB
Outputs Maximum output level XLR / jack: +20 dBu
Output impedance: 50 ohms
Digital Interface Available in the optional 24 Bit / 192 kHz AD Converter Module 1090
Power Supply Toroidal transformer: 15 VAC
Fuses: 315 mA (230 V/50 Hz)
mA (115 V/60 Hz)
Dimensions (W x H x D) Standard EIA-19" Rack mountable 19" / 1U housing: 19.0 x 1.7 x 8.3" (482 x 44 x 210 mm)
Weight 6.8 lb (3.1 kg)
Packaging Info
Package Weight 11 lb
Box Dimensions (LxWxH) 21 x 15 x 5"
Brand new boxed With warranty
Price in Lebanese hasab saref liom or in USD dollars
We deliver to your door
Whatsapp us for orders
Check my listing for more interested products
We sell also Accessories for SPL, Track One , Home Studio , Audio interface , Sound card , studio, studio package ,etc. . .
