Description

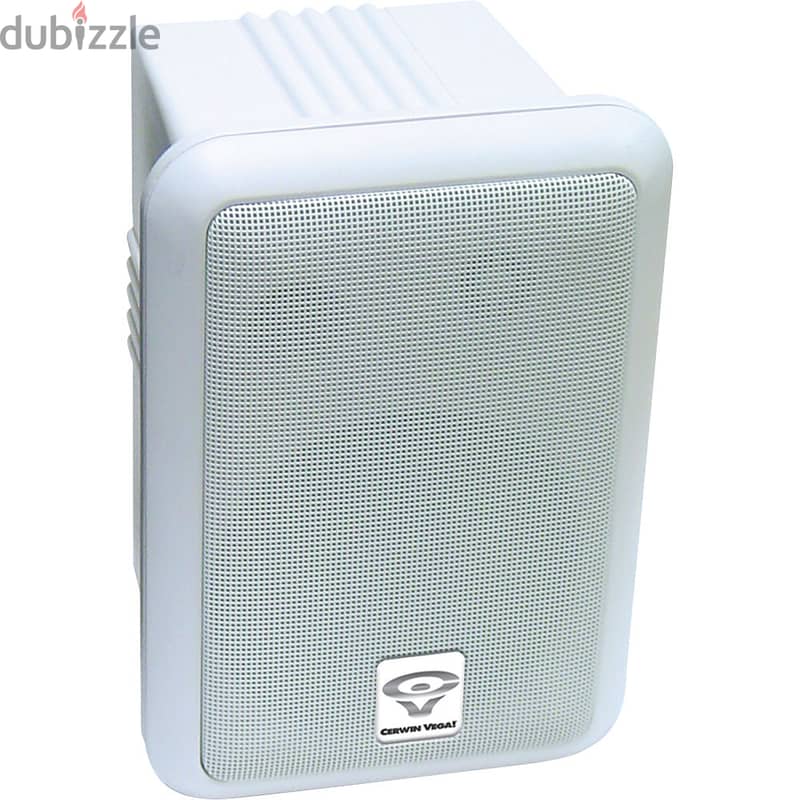

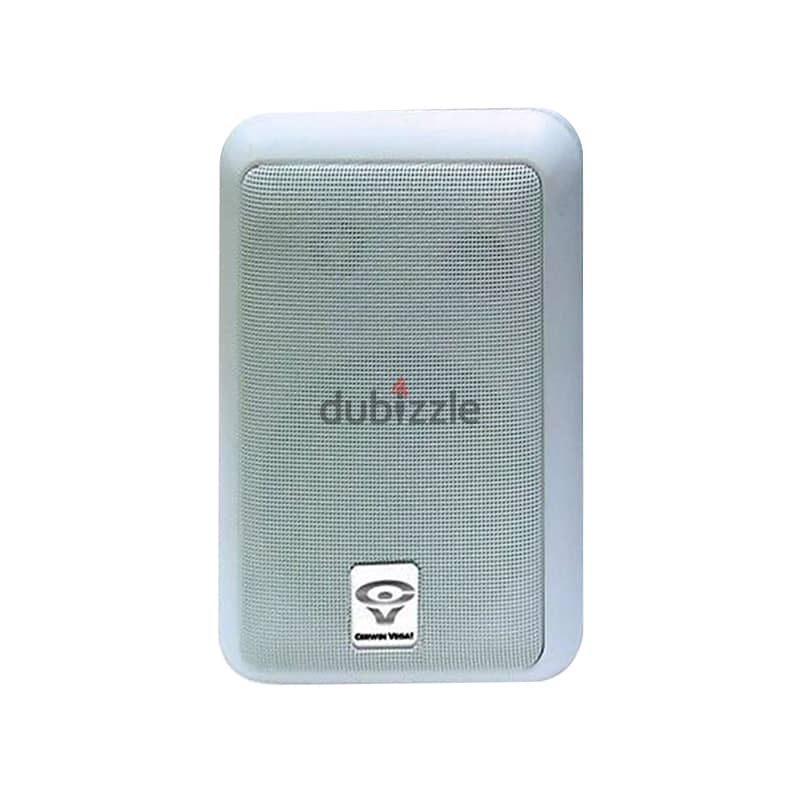

The new Cerwin-Vega Professional SDS-525 is the first product in the new Structural Design Series™. This speaker system is specifically designed for professional applications including foreground and background music playback. Available in black or white, the SDS-525 includes a proprietary, adjustable-mounting bracket.
Specifications
High Frequency: (1)1" Mylar-dome tweeter
Low Frequency: (1)5.25" co-polymer woofer with butyl-rubber surround
88 dB sensitivity @ 1 watt/1 meter
Voice-matched, full-range
Includes fully adjustable mounting bracket
Versatile mounting brackets for a variety of placement options
Small, high-impact, polyresin cabinets with sleek contours and durable metal grilles
The speaker connections are push terminals
Weather-resistant
Master cartons contain three pairs
Flow-through cooling design prevents overheating with continuously variable speed, front to rear
Sold in pairs
Performance Data
Frequency Response: 60 Hz - 20 Hz
Design: 2-way, bass-reflex
Crossover Frequency: 3.5 kHz
Power Handling: 150 watts, IEC-268-5
Sensitivity (1w/1m): 88 dB @ 1 watt/meter
Nominal Impedance:4 ohms
Drivers: (1) 1" mylar-dome tweeter, (1) 5.25" co-polymer woofer with butyl-rubber surround
The SDS-525 is equipped with an adjustable bracket to accomodate both wall and ceiling installations. The bracket with the circular adapter is intended for ceiling mounting to a threaded rod and offers a maximum tilt angle of 60o. Without the circular adapter the bracket can be screwed directly to the wall with a maximum tilt angle of 45o.
