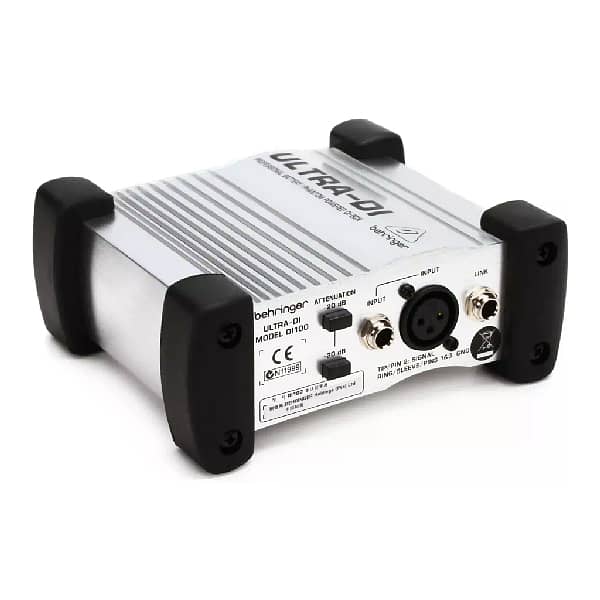

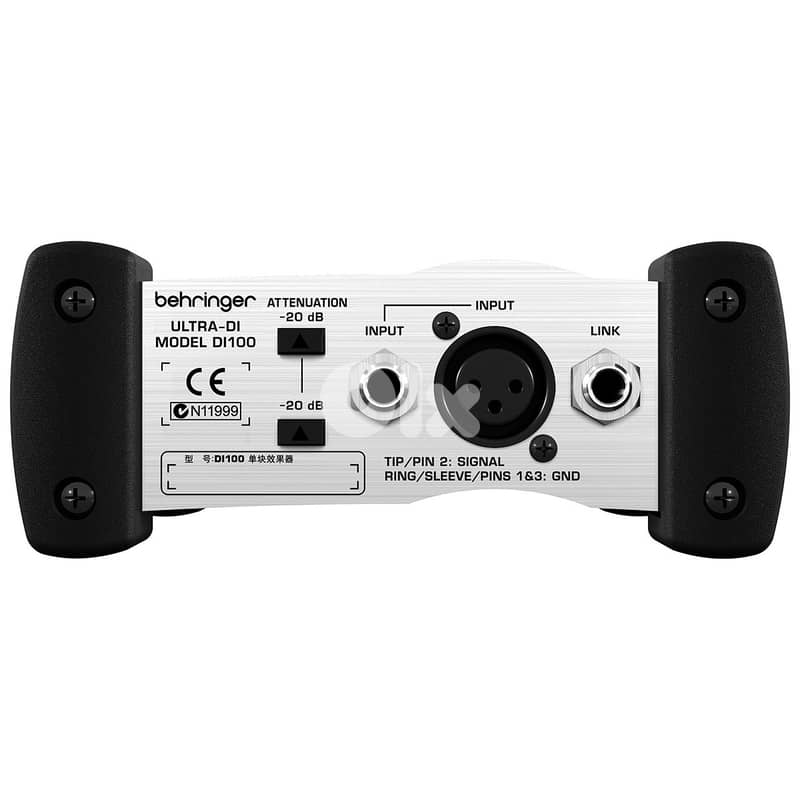

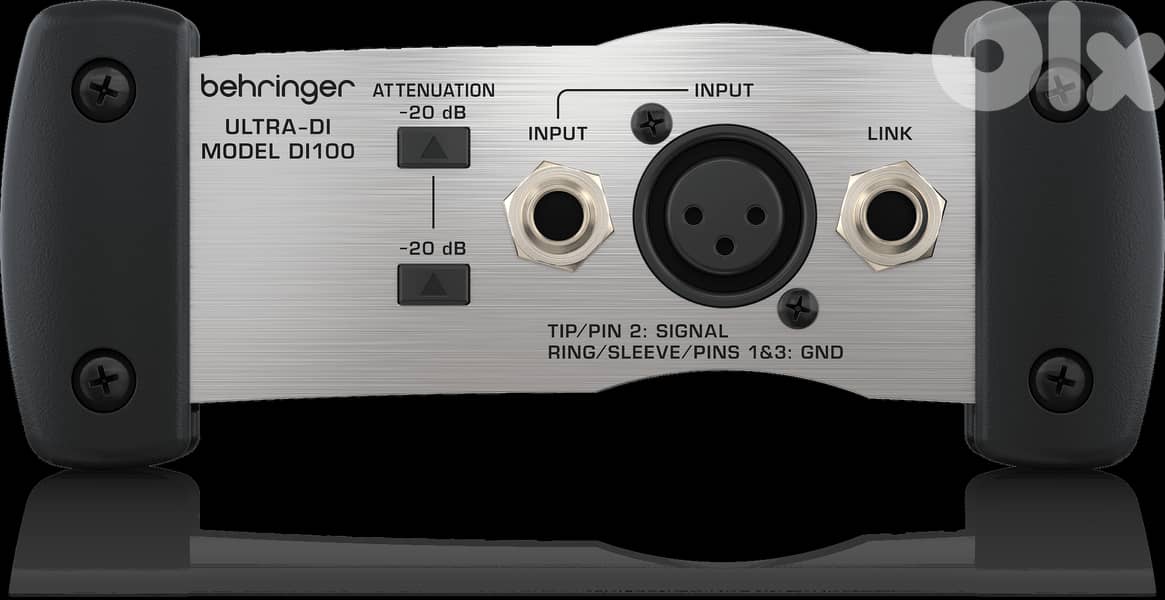

Behringer Ultra-DI DI100 1-channel Active Microphone / Instrument Direct Box
DI Box with Switchable Input Attenuation and Groundlift
Behringer Ultra-DI DI100 Battery/Phantom Powered DI Box Features at a Glance:
Multi-purpose direct injection box for stage and studio applications
Provides impedance and signal matching for direct connection of instruments to mixers and amplifiers
Ultra-flat frequency response courtesy of Behringer OT-1 transformer
Internal battery automatically shuts off when phantom power is applied
Allows direct connection to speaker outputs with up to 3,000W
Switchable input attenuation allows input levels of up to +50dB
Groundlift switch eliminates typical ground loop problems
TRS and gold-plated XLR connectors
Ultra-rugged, road-suitable aluminum case
Stackable oversized rubber corners
High-quality components and exceptionally rugged construction ensure long life and durability
Tech Specs
Type: Active Direct Box
Channels: 1
Pads: -20dB, -40dB
Ground Lift: Yes
Inputs: 1 x 1/4", 1 x XLR
Outputs: 1 x XLR, 1 x 1/4" (link out)
Power Source: 18-48V Phantom Power / 9V battery
Height: 5.905"
Depth: 5.118"
Width: 2.362"
Weight: 1.43 lbs.
Manufacturer Part Number: 0809-AAA86-001
