Mach3 USB CNC 6090 3 Axis 4 Axis CNC Router parameters

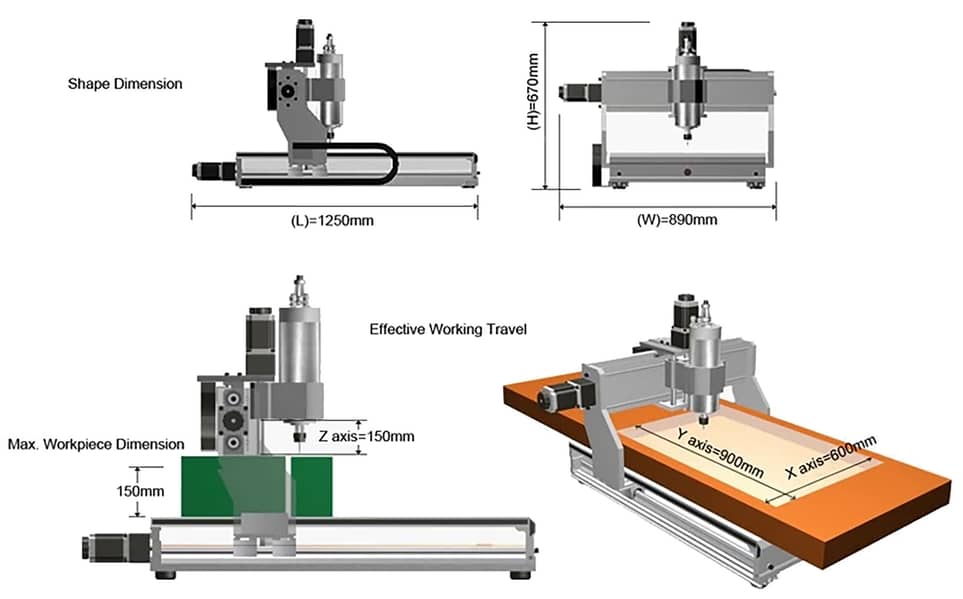

Effective working travel: 600(X)mm*900(Y)mm*150(Z)mm
Shape dimension: 890*1250*670mm
Frame materials Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles. let counterfeiters dwarfs
Axis 3 Axis and 4 Axis version
Acceptable material thickness ≤150mm
Driving units X,Z SFUR1605-DFC7-P0 ball screw, Y SFUR2005-DFC7-P0 ball screw
Sliding units X Axis Dia. 30mm chrome plate shafts
Sliding units Y Axis Dia. 30mm chrome plate shafts
Sliding units Z axis Dia. 16mm chrome plate shafts
Stepping motor type 57 two-phase 3A 150N. cm
4 Axis size and precision 220(L)*116(W)*105(H)mm, 9KG Transmission ratio: 1:3, 0.6 degree/step, K11
4 Axis maximum clamping diameter Center height 65mm, 3 Jaw 80mm Chuck, Maximum clamping 125mm ,Tailstock maximum expansion length 50mm ,Maximum clamping weight 30kg
Spindle motor GDZ80-2.2, 24000RPM, 2200W
Principal axis collet ER20 1-13mm
Repeat accuracy 0.05mm
Spindle precision radial beat acuities 0.03 mm
Maximum speed 0-4000mm/min
Command code G code, or any MACH3 support format file
Protection Emergency stop button
Operating Voltage AC220V/110V
Gross weight 156KG
Other models and sizes are also available.
