Features:
Working Area: The size of the machine's cutting and engraving area is 1300 x 1000mm.
Cutting and Engraving Capability: The machine is able to both cut and engrave a wide range of materials, including wood, acrylic, plastic, rubber, leather, paper, glass…

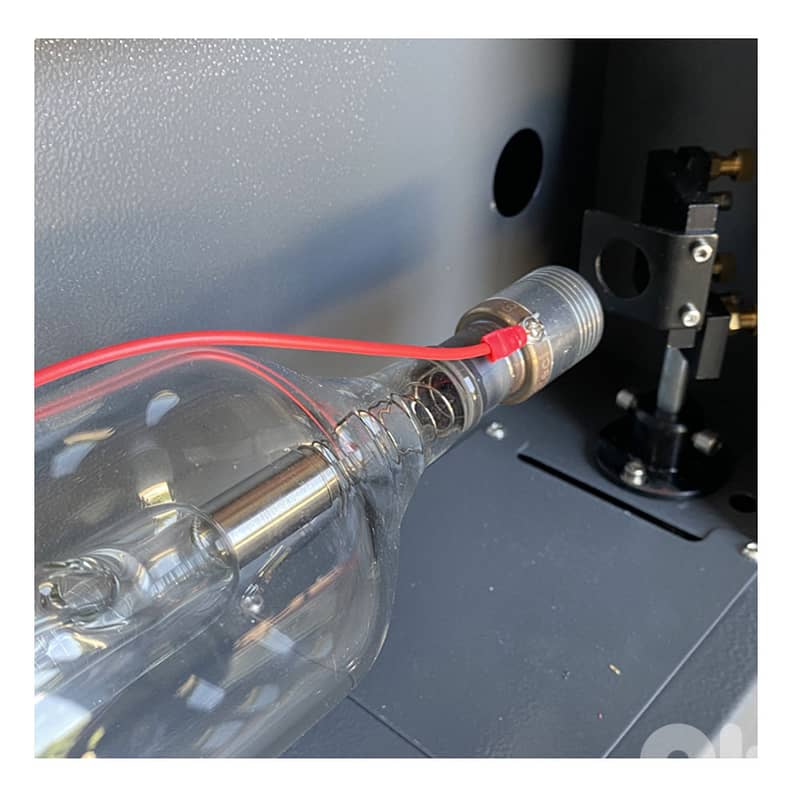

Laser Tube: A high-quality, RECI, long-lasting CO2 laser tube that can provide a consistent and powerful laser beam.
Cooling System: The machine has a reliable and efficient cooling system to prevent the laser tube from overheating during operation.
Control Panel: A user-friendly control panel allows you to adjust the laser's power and speed settings, as well as control other aspects of the machine's operation.
Specifications:

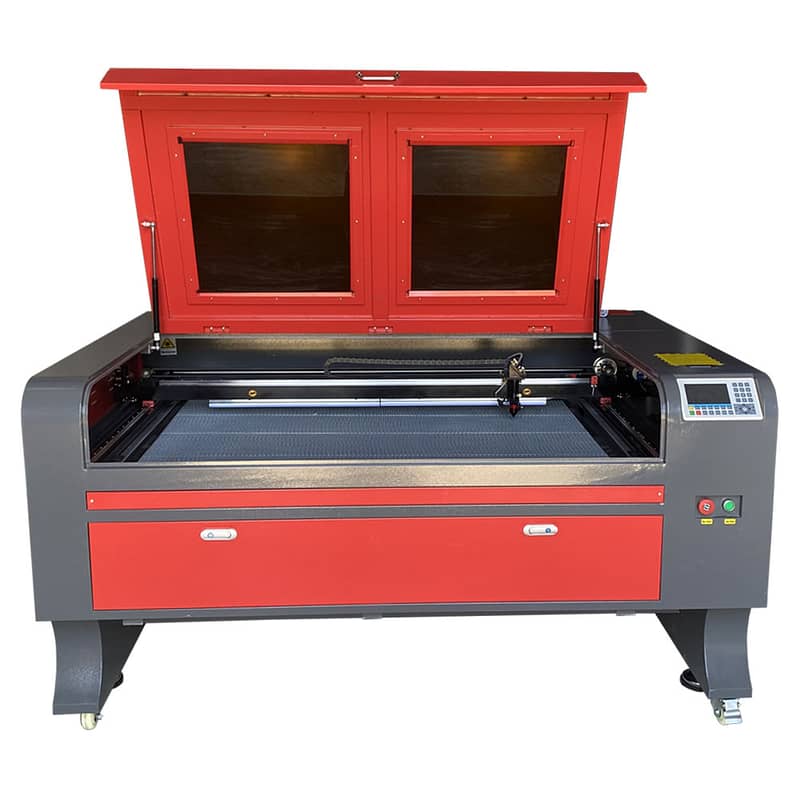

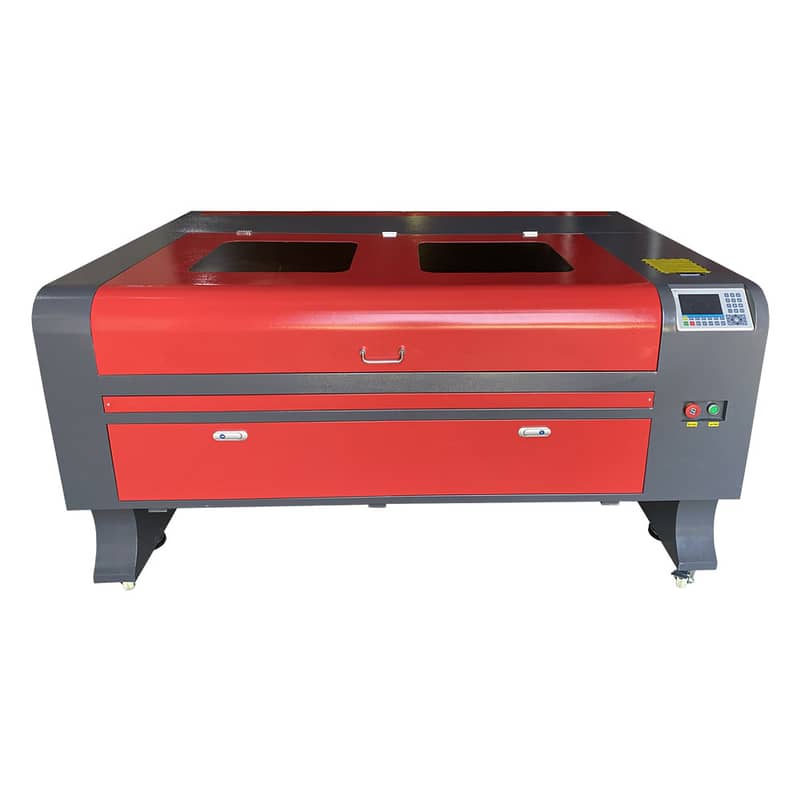

Machine Name: Vyrik 1310 160W Co2 Laser Machine (High Specs)
Model Number: VC0-1310-160
Working Area: 130x100cm (X, Y axis)
Z Clearance: 16cm
Laser Power: RECI W6 160W
Laser Power Supply: ZYE MYJG
Laser Gauge: Ammeter
Main Board: RUIDA 6445S

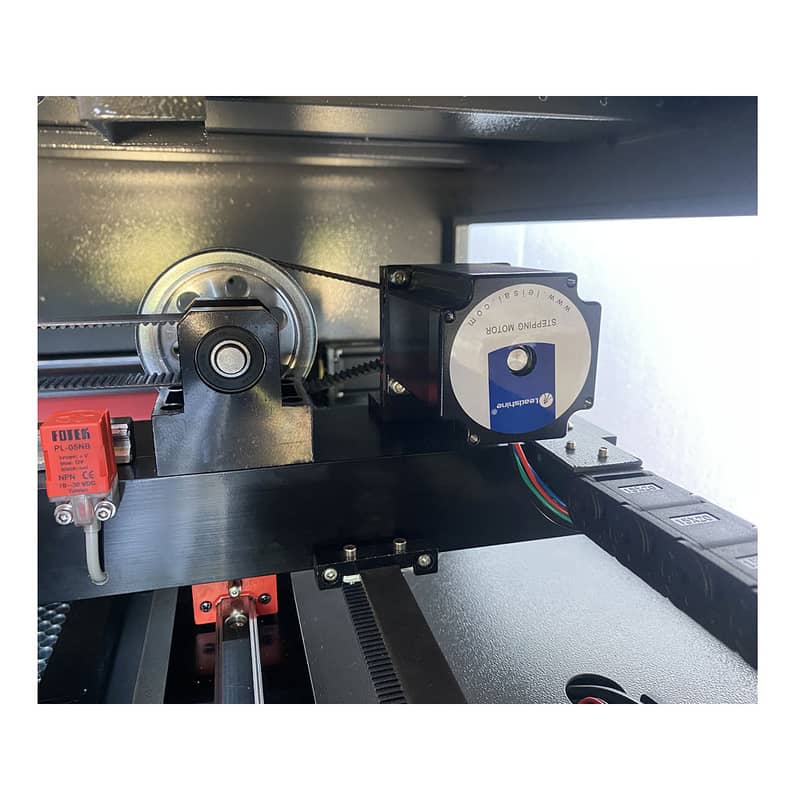

Stepper Motors: Original LEADSHINE
Stepper Motors Drivers: Original LEADSHINE
Cooling: Original S&A Chiller 5200
Guide Rail: Taiwan
Power Supply: Taiwan
Limit Switch: Taiwan
Transmission Method: Belt Driven

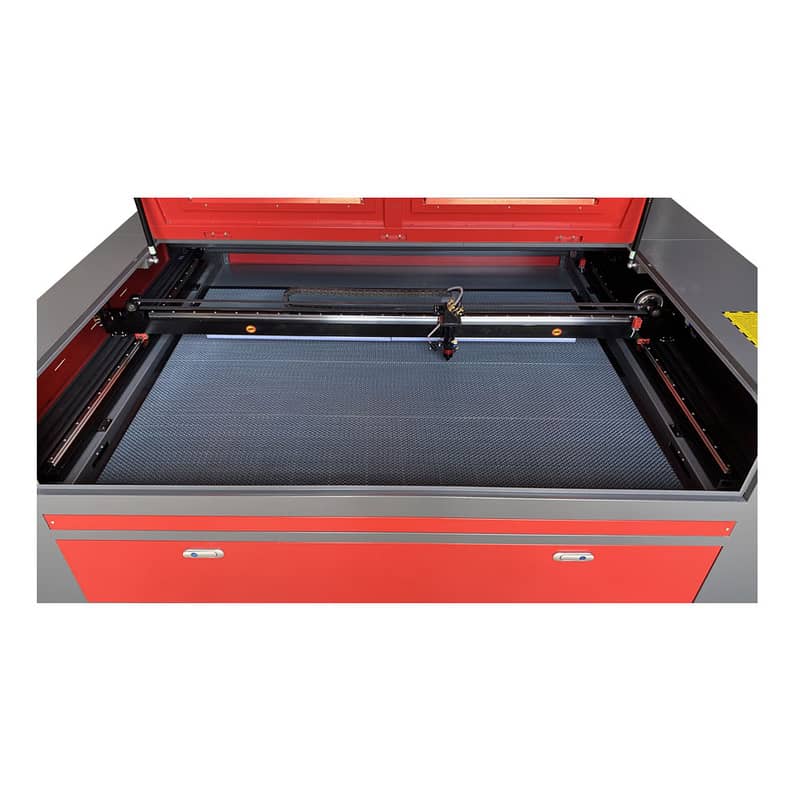

Bed: Honey Comb Table and Electric UP & Down Worktable
Positioning: Red light
Safety: Emergency Stop Button / Water Flow Sensor
Lens Size: Ø20mm
Reflective Mirrors Size: Ø25mm
Air Compressor: 135W
Exhaust Fan: 550W
Software: Illustrator / RDWorksV8 / Lightburn
System: Windows 7 / Windows 10 / Windows 11
Communication: USB Cable, USB-Disk, Network (IP)
Input Voltage: AC220 ±10% / 50Hz
Power Consumption: 1800W (Incl. Exhaust Fan and Chiller)
Warranty: One year (Not Incl. Laser Tube and Mirrors)
Weight: 420Kg
Machine Size: 186x140x100cm
Packing Size: 210x155x83cm
Capabilities:
Engraving: Wood, Acrylic, Plastic, Rubber, Leather, Textiles, Paper, Glass
Cutting: Wood, Acrylic, Plastic, Rubber, Leather, Textiles, Paper
Accessories Included:

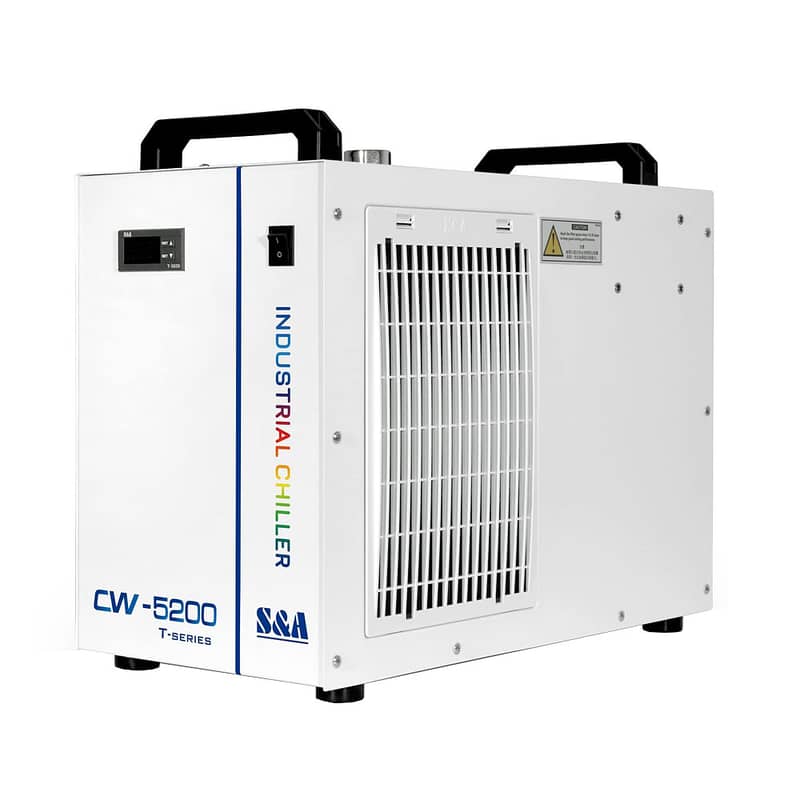

- Water Chiller S&A 5200
- 135W Air Compressor

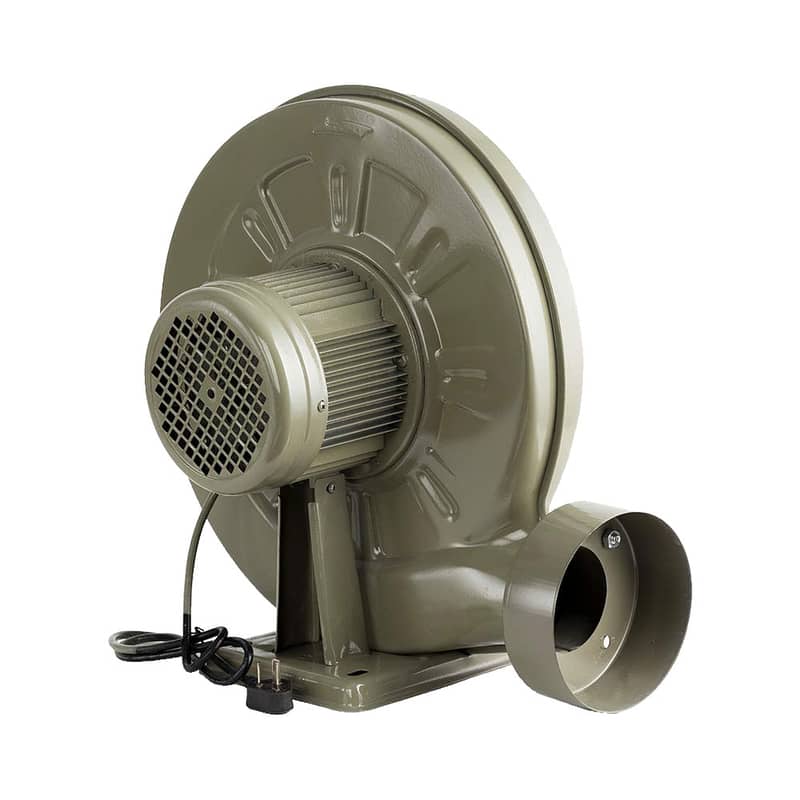

- 550W Exhaust Fan
- Smoke Pipe
- Tool Box
Other models and sizes are also available.
