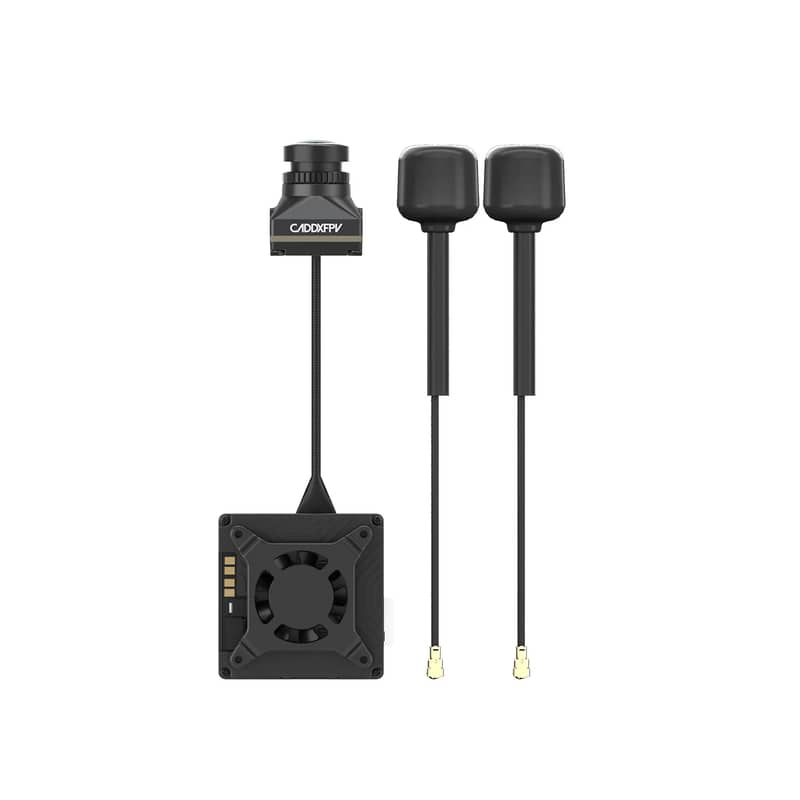

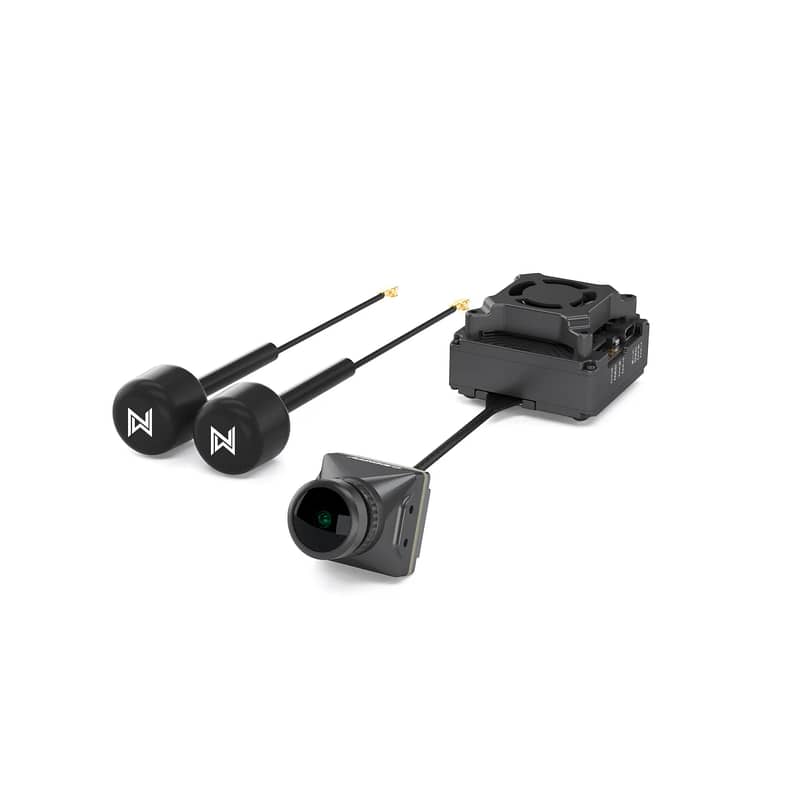

Description
Model Avatar HD Pro Camera
Image Sensor 1/1.8-Inch Sony Starvis Ⅱ sensor
Resolution 1080P/60fps; 1080P/100fps; 720P/120fps; 720P/60fps;
Ratio 16/9; 4/3
Lens 8Mp
FOV 160°
Aperture F1.6
Shutter Rolling shutter
Min. Illumination 0.00001Lux
Weight 9.5g
Dimensions 19*19*24mm
Coaxial Cable 140mm
Gyroflow supported
VTX
Model Avatar GT
Communication Frequency 5.725-5.850 GHz
Transmitter Power (EIRP) FCC: <30dBm, MAX:33dBm ; CE: <14dBm;
SRRC: <20dBm; MIC: <25dBm
I/O Interface Micro SD card slot; JST1.0*4(power cable)
Supported SD Cards Micro SD (up to 256 GB)
Mounting Holes 25.5*25.5mm; 20*20mm
Dimensions 34*34*23mm
Recording 1080p/720p
Weight 41.6g (Antenna included)
Operating Temperature -10-40℃
Channels 8
Wide Power Input 11.1V-25.2V
Supported FC System Betaflight; Inav; Fettec; Kiss; ArduPilot
OSD Canvas mode
Latency Average delay 22ms
Antenna 2(IPEX)
