TwoTrees Laser Diode Engraver TTS-10 Pro - 30x30cm

Name: TwoTrees Laser Diode Engraver TTS-10 Pro - 30x30cm
SKU: 116660035

Sahel Alma, Keserouan

8 hours ago

Details

ConditionNew

Seller TypeAgency

Description

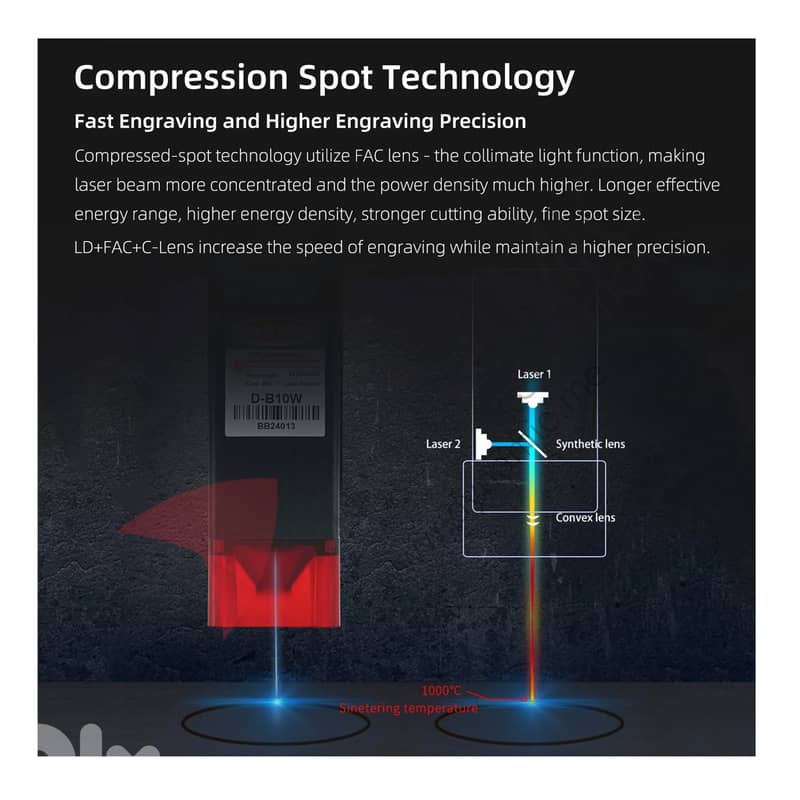

Features: Beam shaping & Spot size: Equipped with LD + FAC + C-Lens tech for sharp engraving, achieving ~0.08 mm spot; some upgraded versions claim 0.06 mm Modular & pre‑assembled: ~60% pre-assembled—final build takes ~20–30 minutes Connectivity: Supports Wi‑Fi, Bluetooth, USB, TF card, mobile app, and web control via onboard ESP32 Cylindrical module: Optional roller accessory enables 360° engraving on bottles, tumblers, etc. Power vs speed: Despite marketing claims like “80 W”, this is power consumption—not laser output. True diode laser output is ~10 W. Cutting speeds for 4 mm plywood realistically ~100 mm/min, possibly slower, with air assist advised Metal engraving: Diode lasers can mark coated or stainless steel but cannot engrave or cut raw metal—wavelength and power limitations apply Specifications: Model: TwoTrees Laser Diode Engraver TTS-10 Pro Working/Engraving Area: 300 × 300 mm Laser Power: 10 W (10,000 mW diode, 445 ± 5 nm) Laser Spot Size: ~0.08 mm (optionally down to 0.06 mm per advanced units) Engraving Accuracy / Positioning: 0.1 mm (some sources say down to 0.01 mm) Engraving Speed: Up to 30,000 mm/min (some mention 12,000 mm/min) Cutting Capability: Approx. 8 mm wood, 5 mm acrylic (with multi-pass) Power Consumption: Input: ~80 W; Output: 10 W laser, DC24 V 5 A Focus System: Fixed-focus with adjustable knob (~50 mm focal distance) Frame and Build Quality: Aluminum profile + plastic; modular design, double Y-axis motors Control Electronics: 32 bit ESP32-based motherboard, Wi Fi/Bluetooth/USB/App control Software Compatibility: LaserGRBL, LightBurn, Benbox, GRBLController, LiteFire; supports jpg, png, dxf, svg, gcode, bmp, etc. OS Compatibility: Windows (XP–11), macOS (via LightBurn), iOS and Android (via app) Machine Weight: Approx. 3–4.3 kg Dimensions / Packaging: ~64×22.5×19.5 cm; package weight ~5.35 kg Laser Life: >15,000 hrs Environmental Specs: Operating temp: 5–40 °C; Humidity: 20–60% Safety Features: Laser protective cover (blocks ~97–98% UV), emergency stop, firmware safeguards Certifications: CE, FCC, RoHS, FDA in some regions

Location

Lebanon
