Description
Mini Oscilloscope DS213 Handheld Mini 4 Channel 100MSa / s Pocket Digital Oscilloscope Handheld Waveform Analyzer Based on ARM Cortex M3 Core
Model: DS213
ADC: HWD(View phone number).
Channels: 2 analog channels + 2 digital channels
Analog bandwidth: 15MHz
Maximum sampling rate: 100MSa / s
Maximum sample memory depth: 4K
Horizontal sensitivity: 100nS / Div ~ 1S / Div (1-2-5 sequence step)
Vertical sensitivity: 10mv / Div ~ 10V / Div (1-2-5 sequence step)
Analog input impedance: 1MΩ
Coupling: DC / AC
Trigger
mode : Rising / falling edge trigger mode
Positive / negative pulse trigger
Logic trigger
Automatic adjustment: none.
Mathematical waveforms: INV A, INV B, A + B, AB, C&D, C | D, RecA, RecB, RecC, RecD
Built-in signal generator: Sine / Square / Triangle / Sawtooth Wave
Synchronous mode: automatic, normal, simple, slow
Automatic measurement: signal sequence / signal cycle / duty ratio, peak
voltage / virtual value / maximum value / minimum value / average
Storage: 8MB USB flash memory
APP installed: 2
Operation: button, encoder (not touch screen).
USB port: MicroUSB.
Battery: 1000 mAh.
Screen Size: 3 ''
Screen resolution: 400 × 240
Package Dimensions: 3917 x 2303 x 15mm.
Product Dimensions: 4.173 x2.205x0.472 in
Grossweight: 15.87 oz.
Product Weight: 10.44 oz.
Battery: lithium cells / batteries contained in the unit UN3481 - PI967.
Open Source: Open Source Application Layer
Certifications: CE / FCC

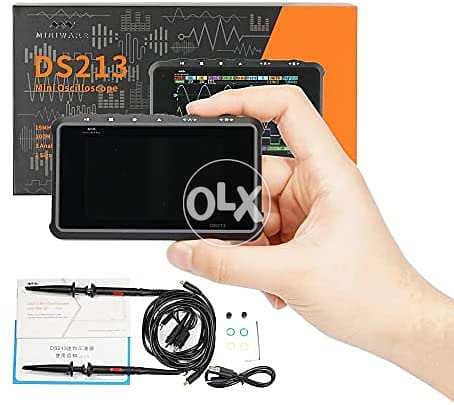

Package listing
1 mini DS213 oscilloscope.
1 probe.
1 USB cable.
1 user manual (Spanish language not guaranteed).
Features and details
Machine introduction: DS213 is a 5-track, 4-wave line digital storage oscilloscope for general purpose electronic engineering tasks and is based on the ARM Cortex M3 core
Easy to use: mini size, light weight, portable and handheld
The effect is obvious: it can store waveforms, making waveform analysis more clear and efficient
Multiple Trigger Modes: Support Rising / Falling Edge Trigger, Positive / Negative Pulse Trigger, and Logic Trigger
Multifunctional: powerful waveform processing ability, can automatically measure parameters such as voltage, frequency and pulse width
