Description

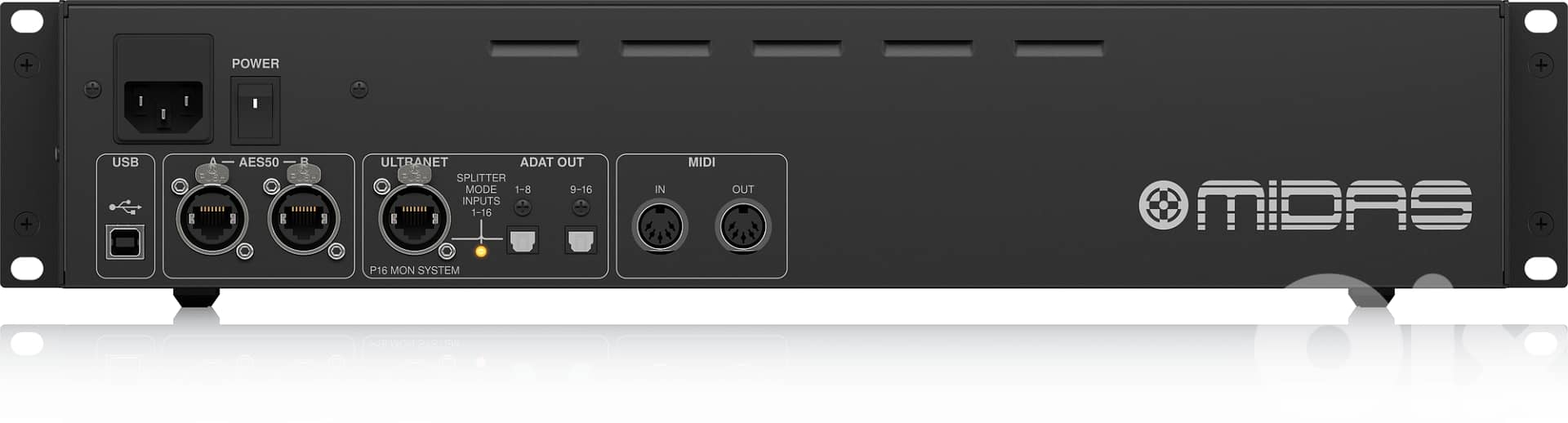

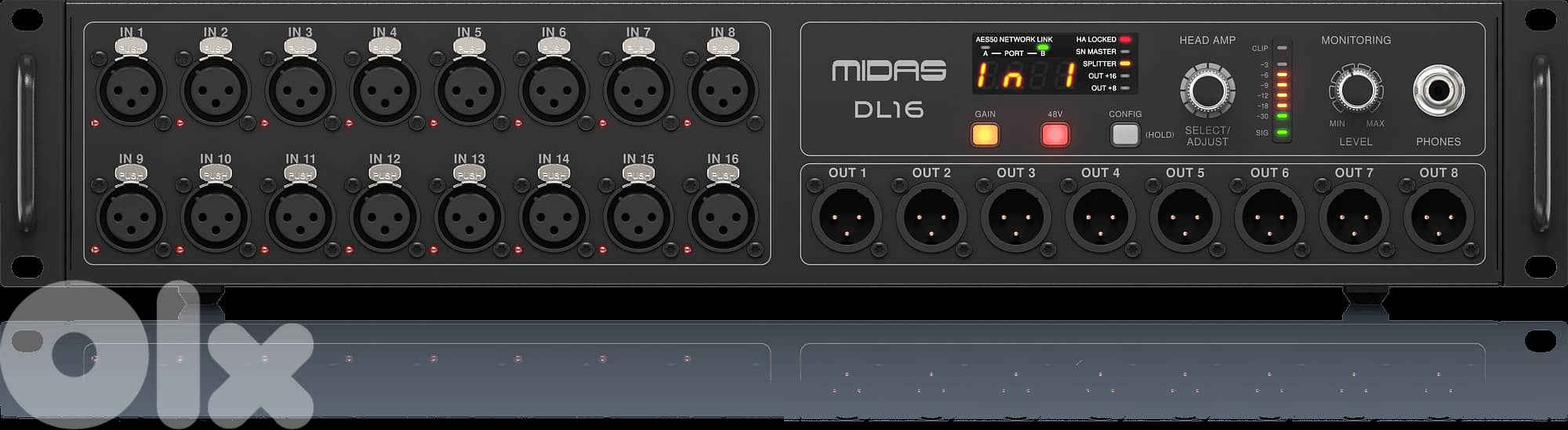

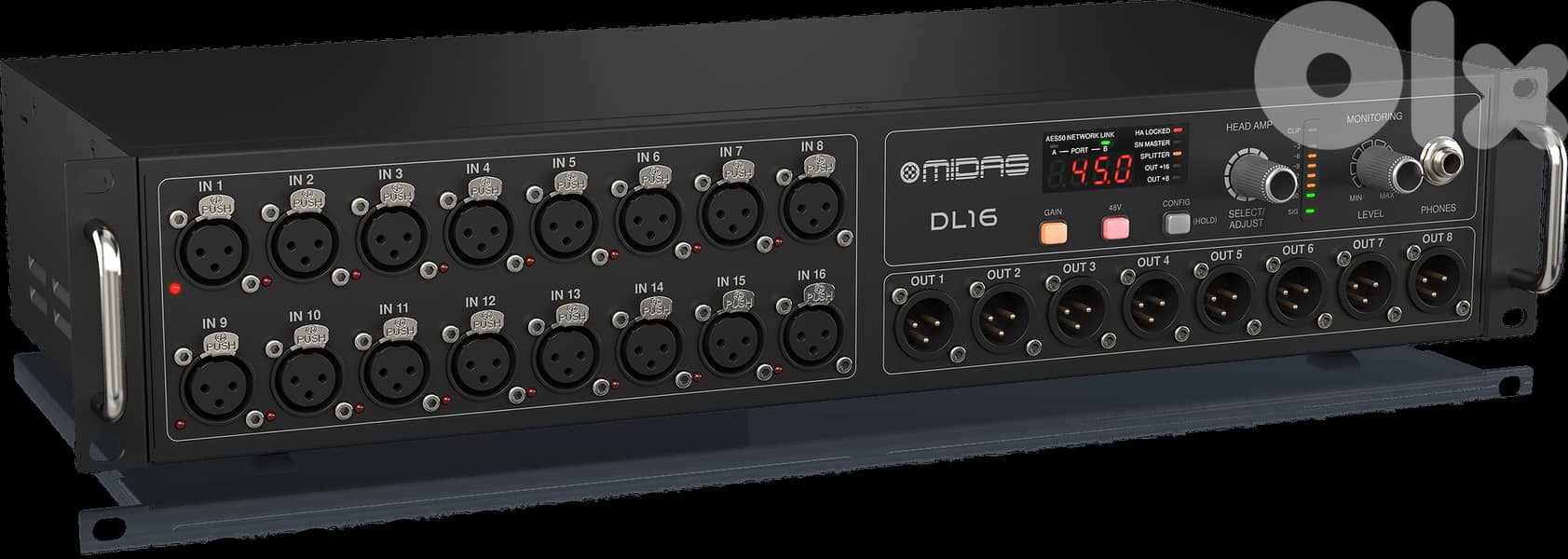

Midas DL16 16-input / 8-output Stage Box
16-in/8-out Stage Box with 16 Midas Microphone Preamplifiers, Ultranet Ethernet Compatibility, and ADAT Digital Connectivity
Midas DL16 Stage Box Features:
Flexible professional digital stage box that works with Powerplay monitor systems and AES50-ready digital consoles
16 x fully programmable and remote-controllable Midas Pro mic preamps give you exceptional sound, right from the stage
8 x analog, servo-balanced XLR outputs let you send complete monitor mixes to the stage
AES50 network ports provide you with ultra-low latency digital audio that's in-ear compatible
Up to 328' of networking capability via a single lightweight Cat 5e cable (not included)
Dual AES50 ports let you cascade up to 3 DL16 units together for an up to 48-in/24-out system
Precise LED metering plus 7-segment displays let you keep a close eye on your levels
Headphones output assignable to any of the inputs/outputs for on-stage monitoring
Ultranet connectivity for Behringer's Powerplay P16 personal monitoring system is perfect for in-ear applications
Dual ADAT outputs for use in splitter mode and stand-alone digital multicore applications
MIDI In/Out provide bidirectional communication between FOH console and on-stage MIDI devices
Durable yet compact, all-steel 2U rack-mount chassis provides flexible mounting
Tech Specs
Type: Digital Stage Box
Compatibility: AES50 / Ultranet systems
Channels: 16 x 8
Inputs - Mic Preamps: 16 x XLR
Phantom Power: Yes
Outputs - Main: 8 x XLR
Outputs - Digital: 2 x Optical Toslink (ADAT)
Data I/O: 2 x EtherCON (AES50), 1 x EtherCON (Ultranet)
USB: 1 x Type B
Computer Connectivity: USB, Ethernet
MIDI I/O: In/Out
Headphones: 1 x 1/4"
Rackmountable: 2U
