1 / 2
USD 350

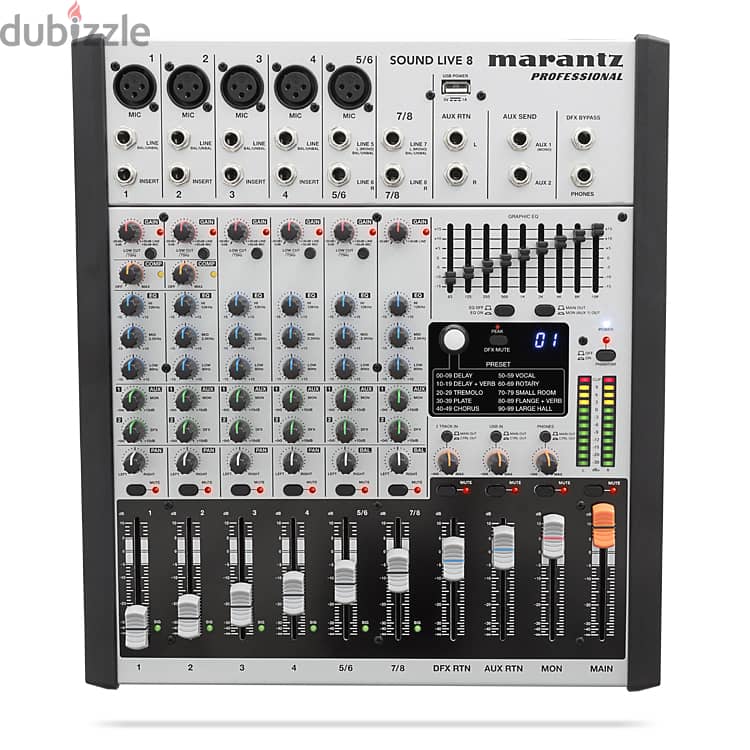

Marantz Sound Live 8 8-Channel / 2-Bus Tabletop Mixer
Hazmiyeh, Baabda
2 weeks agoDetails
TypeOthers
ConditionNew
Description
Overview
Among the full roster of professional-caliber features are 5 XLR inputs with ultra-clean sounding Marantz Professional mic pre-amps, Dynamic compression (channels 1 and 2) 60mm faders with mute switch, 100 studio-grade digital effects and a 9-band EQ for main and monitor outputs.
It all adds up to a space-saving desktop mixer with no-compromise audio performance and connection versatility that results in top-quality productions coupled with unsurpassed ease-of-use.
Features
5 XLR inputs with Marantz Professional microphone preamps
Dynamic compression (Channels 1-2)
3-band EQ plus 2 aux sends per channel
60mm faders with mute switch and LED
USB audio connectivity with level control
100 studio-grade digital effects

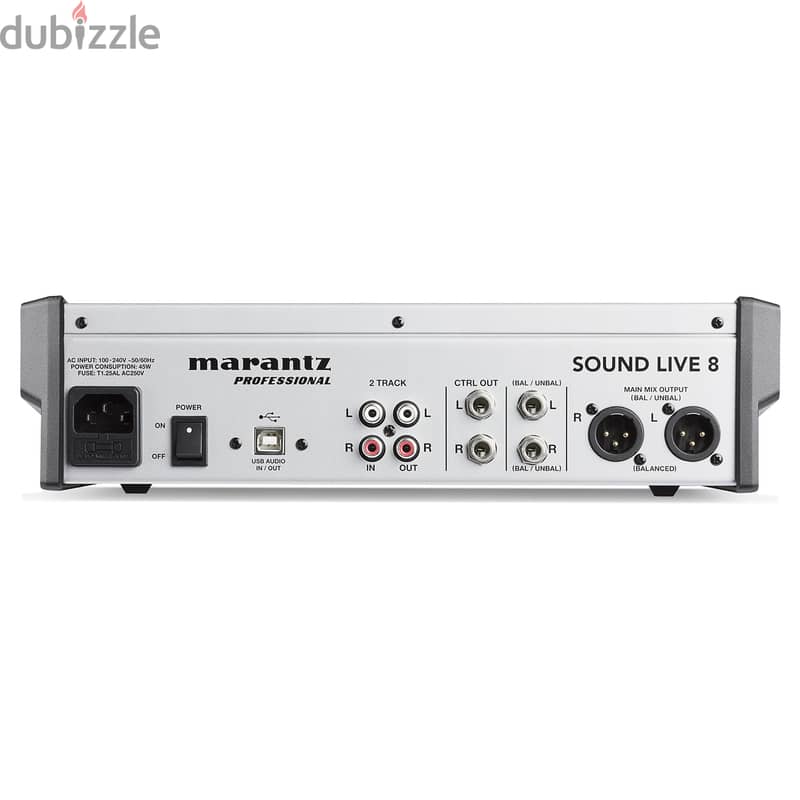

Balanced XLR, balanced/unbalanced 1/4” outputs
9-band graphic EQ for main or monitor outputs
Headphone out with independent level control
USB jack to power lamps or charge mobile devices
Specification
Mono Input Channels
Microphone inputs: Electronically balanced, discrete input configuration
Frequency response: 20 Hz to 20 kHz, +0.5 dB
THD+N: <;;;;;0.005% at 0 dBu, 1 kHz
Gain range: 0 dB to 45 dB (Mic)
SNR: 105 dB
Line Inputs
Electronically balanced
Frequency response: 20 Hz to 20 kHz, +0.25 dB
THD+N: <;;;;;0.005% at 0 dBu, 1 kHz
Sensitivity range: -15 dBu to 30 dBu
Impedances
Microphone inputs: 51.1 K?
Channel insert return: 200 K?
All other inputs: >;;;;;100 K?
2-Track outputs: 10 K?
All other outputs: 20 K?
Equalization
High-shelving: ±15 dB @ 12 kHz
Mid-bell (mono): ±15 [redacted email address] kHz
Low-shelving: ±15 dB @ 80 Hz
Main EQ: 9 EQ bands (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz, 8 kHz, 16 kHz), ±15 dB
DSP
A/D & D/A converters: 24-bit
DSP Resolution: 24-bit
Effects: 10 DSP effects families with 10 variations available per family
Presets: 100 total
Controls: Rotary encoder preset selector, DSP mute switch, peak LED indicator
Main Mix
Noise (bus noise): -102 dBr (ref: +4 dBu, fader 0 dB, channels muted)
Noise (bus noise): -91 dBr (ref: +4 dBu, fader 0 dB, all input channels assigned and set to “unity” gain)
Phantom Power: Mic Pin2/Pin3 and Pin1 47±2V
General
Mains voltage: USA/Canada: 100–120 VAC ~60 Hz
Mains voltage: UK/Australia: 240 VAC ~50 Hz
Mains voltage: Europe: 210–240 VAC ~50 Hz
Dimensions: 12.0” x 13.6” x 3.1” (305 mm x 346 mm x 80 mm)
Weight: 7.7 lbs. (3.5Kg)
Location
HazmiyehBaabda
