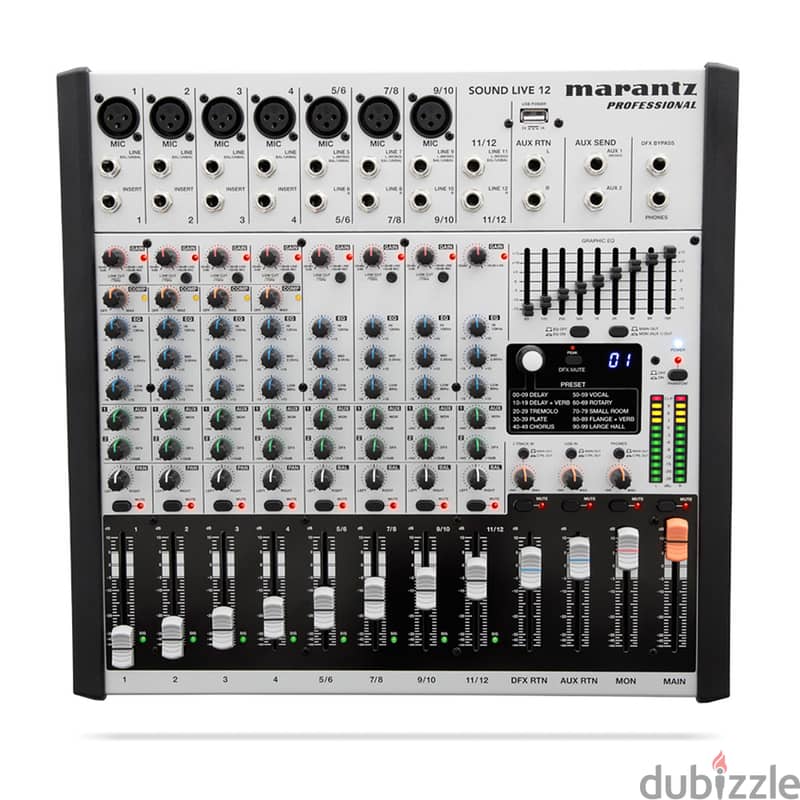

Marantz Sound Live 12 12-Channel / 2-Bus Tabletop Mixer
Hazmiyeh, Baabda
2 weeks agoDetails
TypeOthers
ConditionNew
Seller TypeIndividual
Description
Overview
Among the full roster of professional-caliber features are 7 XLR inputs with ultra-clean sounding Marantz Professional mic pre-amps, Dynamic compression (channels 1 to 4) 60mm faders with mute switch, 100 studio-grade digital effects and a 9-band EQ for main and monitor outputs.
It all adds up to a space-saving desktop mixer with no-compromise audio performance and connection versatility that results in top-quality productions coupled with unsurpassed ease-of-use.
Features
7 XLR inputs with Marantz Professional mic preamps
Dynamic compression (Channels 1-4)
3-band EQ plus 2 aux sends per channel
60mm faders with mute switch and LED meters
USB audio connectivity with level control
100 studio-grade digital effects
Balanced XLR, balanced/unbalanced 1/4” outputs
9-band graphic EQ for main or monitor outputs
Headphone out with independent level control
USB jack to power lamps or charge mobile devices
Specification
Mono Input Channels
Microphone inputs: Electronically balanced, discrete input configuration
Frequency response: 20 Hz to 20 kHz, +0.5 dB
THD+N: <;;;;;0.02% at 0 dBu, 1 kHz
Gain range: 0 dB to 45 dB (Mic)
SNR: 90 dB
Line Inputs
Electronically balanced
Frequency response: 20 Hz to 20 kHz, +0.5 dB
THD+N: <;;;;;0.03% at 0 dBu, 1 kHz
Sensitivity range: -15 dBu to 30 dBu
Impedances
Microphone inputs: 51.1 K?
Channel insert return: 200 K?
All other inputs: >;;;;;100 K?
2-Track outputs: 10 K?
All other outputs: 20 K?
Equalization
High-shelving: ±15 dB @ 12 kHz
Mid-bell (mono): ±15 [redacted email address] kHz
Low-shelving: ±15 dB @ 80 Hz
Main EQ: 9 EQ bands (63 Hz, 125 Hz, 250 Hz, 500 Hz, 1 kHz, 2 kHz, 4 kHz,8 kHz, 16 kHz), ±15 dB
DSP
A/D & D/A converters: 24-bit
DSP Resolution: 24-bit
Effects: 10 DSP effects families with 10 variations available per family
Presets: 100 total
Controls: Rotary encoder preset selector, DSP mute switch, peak LED indicator
Main Mix
Noise (bus noise): -64 dBr (ref: +4 dBu, fader 0 dB, channels muted)
Noise (bus noise): -64 dBr (ref: +4 dBu, fader 0 dB, all input channelsassigned and set to “unity” gain)
Phantom Power: Mic Pin 2/Pin 3 and Pin 1 47±2V
General
Mains voltage: USA/Canada: 100–120 VAC ~60 Hz
Mains voltage: UK/Australia: 240 VAC ~50 Hz
Mains voltage: Europe: 210–240 VAC ~50 Hz
Power consumption: 40 W
Fuse: 1.25 A
Mains connection: Standard IEC receptacle
Dimensions: 14.1” x 13.6” x 3.1” (358 x 346 x 80 mm)
Weight: 9.0 lbs. (4.1 kg)
