M-Audio BX5 D3 5 inch Powered Studio Monitor
100-watt Active Studio Monitor with 5" LF Driver and 1" HF Driver (each)

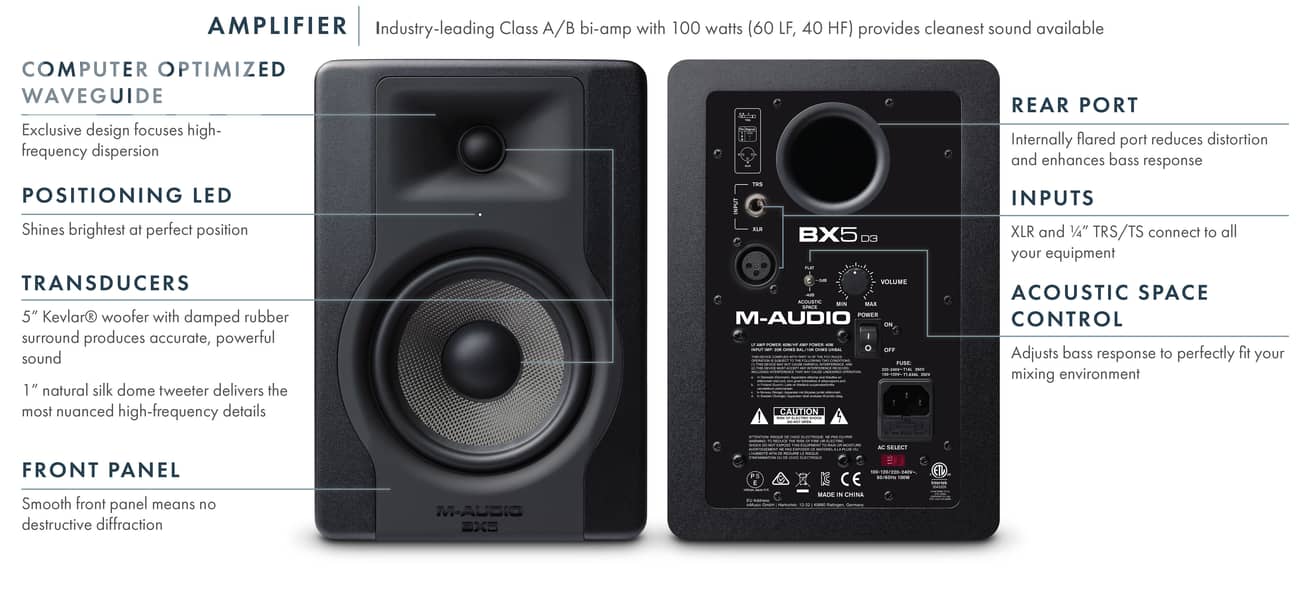

M-Audio BX5 D3 Features:
100W active studio monitor with 5" military-grade Kevlar low-frequency driver and 1" silk dome tweeter
Bi-amplified design delivers a sound that's both powerful and precise
Custom waveguide ensures accurate dispersion for an incredibly tight soundstage
Optimized rear-mounted port produces defined low-end response with bass extension down to 52Hz
Acoustic Space Control tailors your monitor to your mix space
Volume control for dialing in the perfect playback level
Balanced combo input allows for flexible installation
Front-panel LED shines brightly when the speaker is positioned at an ideal angle
Tech Specs
Powered: Yes
Power Configuration: Bi-amped
Quantity: Single
LF Driver Size: 5" woofer
LF Driver Type: Kevlar with rubber surround
HF Driver Size: 1" tweeter
HF Driver Type: Silk dome
LF Driver Power Amp: 60W
HF Driver Power Amp: 40W
Total Power: 100W Class AB
Frequency Response: 52Hz-35kHz
Crossover Frequency: 2.5kHz
Maximum Peak SPL: 110 dB SPL
Input Types: 1 x 1/4" TRS, 1 x XLR
Features: Acoustic space bass response switch
Enclosure Type: Rear Ported
Enclosure Material: Vinyl laminated MDF
Height: 10"
Width: 6.9"
Depth: 7.8"
Weight: 12.3 lbs.
Manufacturer Part Number: BX5D3XUS
