Description
| Vertical panel saws | Pressure beam saws
Compact Dimensions – Maximum Performance
CUT 6120
PRODUCTIVITY AND
The saw with the
high performance spectrum

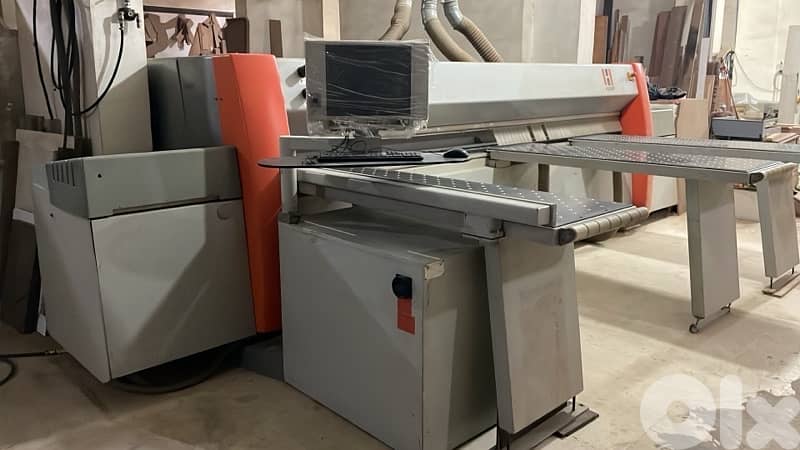

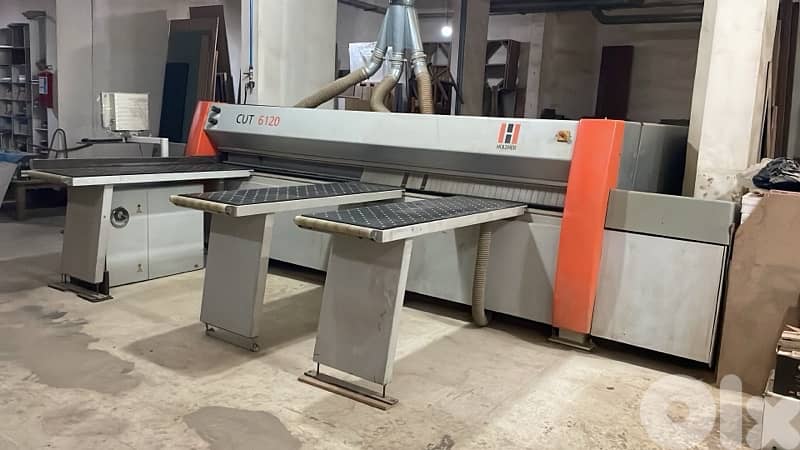

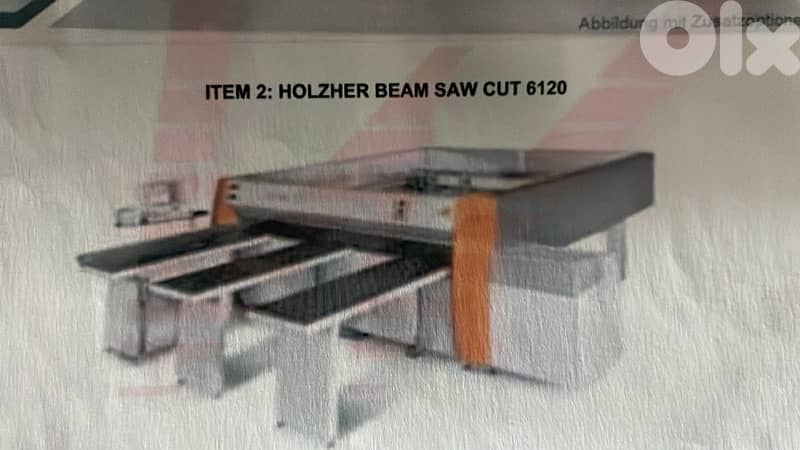

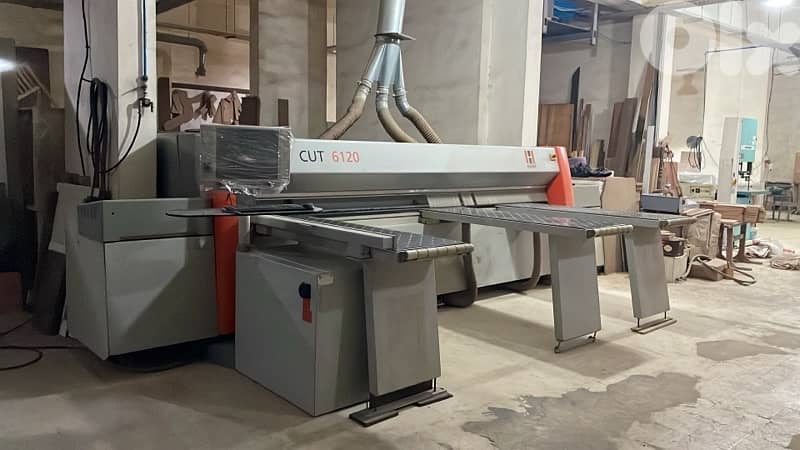

The CUT 6120 pressure beam saw is a high performance package.
It is compact and therefore even fit in shops where work areas require extremely
economic planning. Nevertheless its cutting performance is far beyond standard.
The free-supporting, torsionally rigid design of the base frame as well as the high
quality equipment is a distinguishing feature of this saw.
Saw carriages, sawing units and rip fences are held precisely by ground
V-guides preventing vibration. This ensures clean and precision cuts.
Electronically controlled saw carriage with cut-out device
high productivity even for light cutouts.
– infinitely regulated feed rates from 0 to 100 m/ min.
– Saw carriage return speed 130 m/ min.
The high quality rack-and-pinion drive provides for high
acceleration rates and rapid operating cycles without effort.
– Rip fence motion speeds up to a maximum of 100 m/min
(EU: 0 to 25 m/min).
Electronically control pressure beam for short cycle times
Air cushion machine table for simple handling of
heavy panel stacks (optional) to prevent scratching
sensitive panels.
Illustrations may contain optional features.
High Power – Extremely
SmoothOperation
The heavy duty main sawing unit (11 kW) is driven by a
ribbed belt. This ensures extremely smooth operation.
Surface hardened linear guides ensure that the unit is raised
and lowered uniformly. The scoring unit also satisfies these
high requirements. The prescoring cutter can be adjust electri-

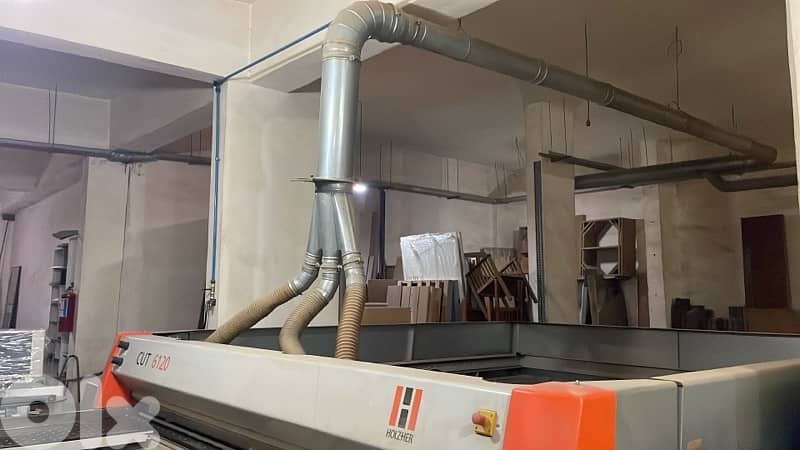

cally. The central dust extraction unit which moves with the saw
carriage sucks up the dust right where it originates.
TECHNOLOGY
Technology and equipment
to meet highest demands
The CUT 6120 meets the highest demands
in terms of technology and equipment.
The stable support tables never distort, event under
heavy panel packages.
The support tables can be moved for work with small
dimensions or to obtain additional space (optional).
Air cushions for the machine table protect the panels
during handling. Two powerful fans provide a large area
air cushion, which allows heavy stacks of panels to be
moved easily.
CUT 6120 –82 mm
New CUT 6120 Sawing Unit
Exceptional stability, laid out for high travelling rates, optimum
user convenience. A contactless optical system for automatic
limitation of the cutting length allows the sawing unit to
recognise the end of the work, thereby optimising the sawing
cycle. With a saw blade diameter of 350 mm the automatic,
infinite cutting height adjustment ensures an optimum saw
blade protrusion and therefore a clean cut edge.
High performance postforming unit for tear-free cutting
of postforming and other edges up to a panel thickness of
50mm.
Prescoring unit with electrically adjustable height
and width on control.
Grooving unit – bidirectional grooving for rapid
cycle sequence.
Groove depth electronically adjustable from 0 to 35 mm
on control.
Air cushion in machine table to protect
sensitive panel finishes (optional).
TECHNOLOGY
Perfect Hold –
Pressure Beam and Clamp
The pressure beam is controlled pneumatically, the pressure can be
regulated precisely to prevent damage to sensitive work.
The pneumatically controlled angular pressing device holds the
worksecurely in position, guaranteeing an exact cut, even with long
workpieces [Fig. 8].
– Angle pressing device can be prepositioned up to a maximum
of1300mm (optional). Prepositioning saves time by
reducing cycle times and increasing saw output.
Dynamic feeding –pop-up length alignment pins for
fast cycle time for the alignment of panel books,
feeded automatically [Fig. 1].
Dynamic feed – liftable clamps for moving over
panels already fed in [Fig. 2].
First clamp as double finger clamp with pneumatic
format and trimming unit for clamping 3 strips with
maximum dimensions of 80 mm each [Fig. 3].
1
3
Angle cut unit
2
1300
