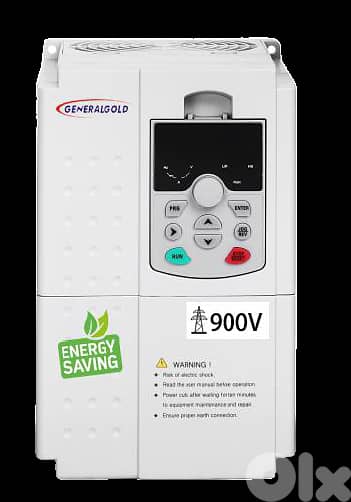

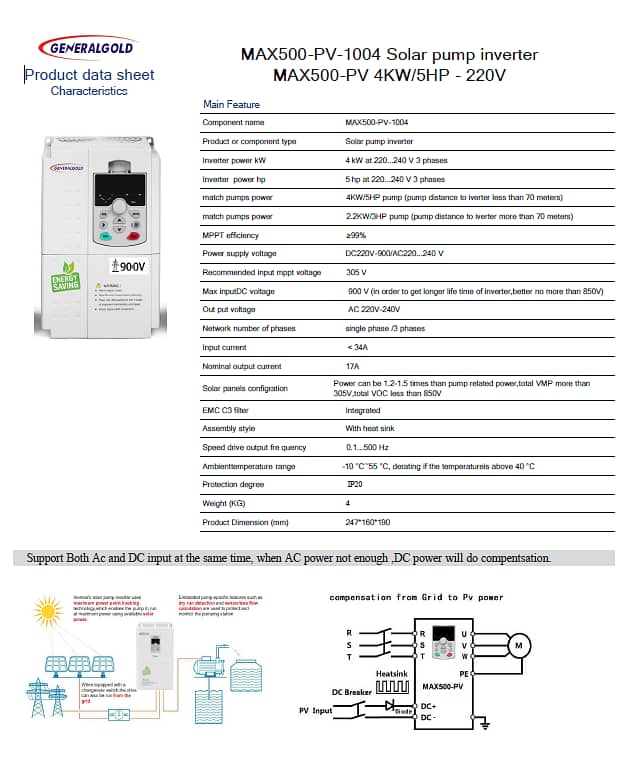

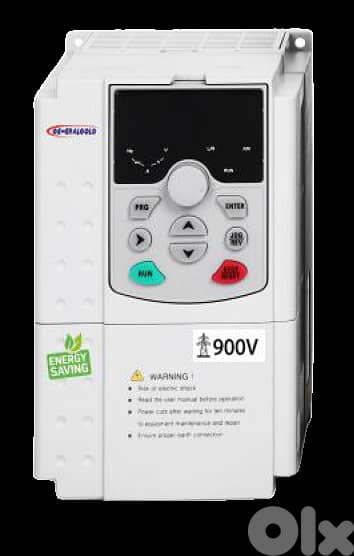

GeneralGold Solar Pump Inverter 2.2Kw & 4Kw 1 Phase
Main Feature
Product or component type: Solar pump inverter
Inverter power Kw: 4 kW at 220. . . 240
Inverter power HP: 5 HP at 220. . . 240 V
Match pumps power: 4 KW/5 HP pump (pump distance to inverter less than 70 meters)
Match pumps power: 2.2 KW/3HP pump (pump distance to inverter more than 70 meters)
MPPT efficiency ≥99%
Power supply voltage: DC220V-900/AC220. . . 240 V
Recommended input MPPT voltage: 305 V
Max input DC voltage: 900 V (in order to get longer life time of inverter, better no more than 850V)
Out put voltage: AC 220V-240V
Network number of phases single: phase /3 phases
Input current: <;;;;;;;;; 34A
Nominal output current: 17 A
Solar panels configuration: Power can be 1.2-1.5 times than pump related power, total VMP more than 305V,total VOC less than 850V
EMC C3 filter: Integrated
Assembly style: With heat sink
Speed drive output frequency: 0.1. . . 500 Hz
Ambient temperature range -10 °C~55 °C, derating if the temperature is above 40 °C
Protection degree: IP20
Weight (KG): 4
Product Dimension (mm): 247*160*190
