Description

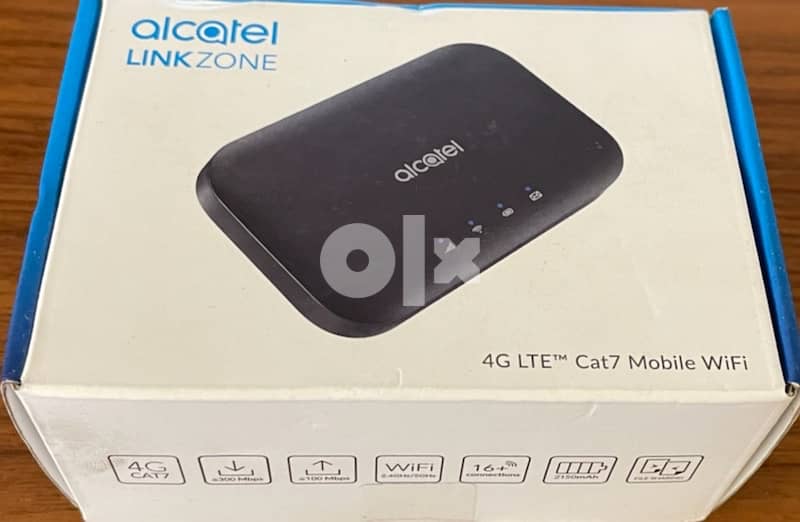

alcatel LINKZONE
4G LTE' Cat7 Mobile WiFi
Tech Specs
DESIGN
Size: 4.13" x 2.60' x 0.75"
105 x 66 x 19mm
Weight: 5.15 oz
146g7
Color: White
MEMORY
Internal Storage: 2GB ROM + 1GB
RAM
WIFI
Wi-Fi Frequency: 802.11 a/b/g/n/ac,
dual band, 1x1, 2.4GHz/5GHz, DBSC
Wi-Fi Users: Up to 16
Encryption: WPA, WPA2
Pre-Shared Key (PSK)
+ Encryption: AES, KIP, Auto
SSID: Single SSID Broadcast
WPS: Supported
BATTERY
Size: 4400 mAh (removable)
Power bank: Supported
Usage Time: Up to 24 hrs (4G LTE
Cellular browsing via 2 clients
simultaneouslv):
Up to 23 hrs (3G Cellular browsing via
2 clients simultaneously)
Standby Time: Up to 75 hrs (3G/4G)
Charging Time Until Full: 3.01 hours
FEATURES
Chipset: Qualcomm® MDM9207+
OCA9377
LED: Wi-Fi (1x blue)
Signal (3x blue)
Battery (3x blue)
SMS (1x blue)
Button: Power, WPS (Reset button is
inside device)
Interface: 1x Nano-SIM 4FF
1x Reset hole
1x Type C 2.0 port for charging in
1x Type A 2.0 port for charging out
Other Features: Power bank, OMA-DM
WEB UI
Languages Supported: English, Spanish
NOS Supported: Windows & Mac
Mobile & Desktop Ul
SMS: Supported
ENVIRONMENT
Operation Temperature: 0 to 55°C
Operation Humidity: 10% to 90%
CONNECTIVITY
Network/3G/4G/LTE: LTE FDD:
2/4/5/12/25/26/66/71
TDD LTE: B41 (HPUE Lite: Doesn't
support high power UE for B41, but
amplifies power of B41)
GSM: 850/900/1800/1900MHz
UMTS: 1/2/4/5
Max Data Rate: Cat4 LTE, DL MIMO
2X2
FDD-LTE DL 150Mbps/UL 50Mbps
USB Tethering: Supported
LTE MIMO: DL 2x2
USB Type: USB Type C for charging in,
USB Type A for charging out
SIM Type: Nano-SIM 4FF
Card Slot: 1 Nano-SIM
IN BOX
Quick Reference Guide (QRG): Yes
Charger: 5V/2A US Type charger
Cable: Type C USB Cable
Connector on Device: Tvpe C USB Port
(5V/2A) Charge in
Type A Port (5V/1A) Chargé out (Power
Bank Function)
Others: Terms & Conditions
